UPVC / CPVC Plastic Pipe Production Line Double Vacuum Chamber Structure

Model Number : JWG-PVC

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Depends on different model

Payment Terms : L/C, T/T

Supply Ability : 4 sets / 90 days

Delivery Time : 90 days

Packaging Details : Without package or wooden

Application : Pipe

Screw : Single

Plastic : UPVC, CPVC

Weight : 40-50T

Dimension : Customized

Voltage : Customized

Contact Now

Descriptions :

According to different diameter and production requirements, here have various special specifications of PVC twin-screw extruder to used. The special designed screw structure, uniform plasticizing, high output.

PVC extrusion die head used high quality alloy steel manufacturing, channel surface with brightness and anti-corrosive. Wide flow channel design to ensure the retention time of the melt in the die head and the largest extrusion production.

In view of the large diameter PVC pipe, the vacuum chamber structure design, equipped with a circular plate, making pipe roundness and forming better.

Haul-off unit used 2 to 10 caterpillars, mating with different specifications of the planetary cutting machine, adopt to all PVC dimensions pipe production. Optional online belling machine.

Main Technical Parameters
Model	Pipe spec. (mm)	Extruder	Max. Output (kg/h)	Total Power (kw)
JWG-PVC160	⌀63-⌀160	SJZ65/132	250-300	100
JWG-PVC250	⌀75-⌀250	SJZ65/132	250-300	110
JWG-PVC315	⌀160-⌀315	SJZ80/156	300-400	180
JWG-PVC450	⌀200-⌀450	SJZ80/173	450-500	245
JWG-PVC630	⌀315-⌀630	SJZ92/188	650-750	350
JWG-PVC800	⌀400-⌀800	SJZ110/220	1000-1300	420
JWG-PVC1000	⌀500-⌀1000	SJZ110/220	1000-1300	460

Product Tags:

pvc pipe making machine

ppr pipe production line

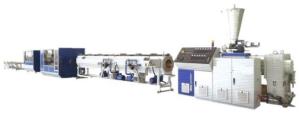

UPVC / CPVC Plastic Pipe Production Line Double Vacuum Chamber Structure Images
